उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| प्रोडक्ट का नाम: | विस्तारित धातु तार जाल | प्रमुख शब्द: | विस्तारित धातु शीट |
|---|---|---|---|
| वायर व्यास: | 0.02-2 मिमी | चादर की लंबाई: | 1500-2500 मिमी |
| सतह का उपचार: | जस्ती | मेष आकृति: | डायमंड |
| शीट की मोटाई: | 2.0-4.0 मिमी | रंग प्रकार: | लाल स्लिव आदि |
| खत्म करना: | anodized, पीवीसी लेपित या PVDF लेपित। | प्रक्रिया: | काटना, मुक्का मारना |
| प्रमुखता देना: | expanded steel wire mesh sheet,hole shape expanded metal mesh,high quality expanded wire mesh |
||

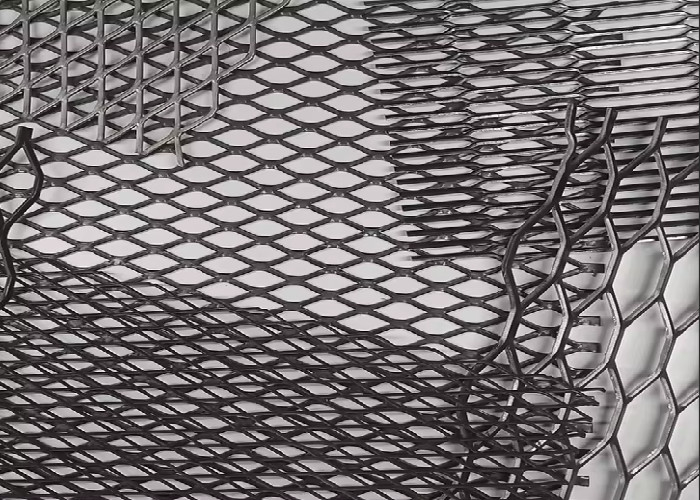

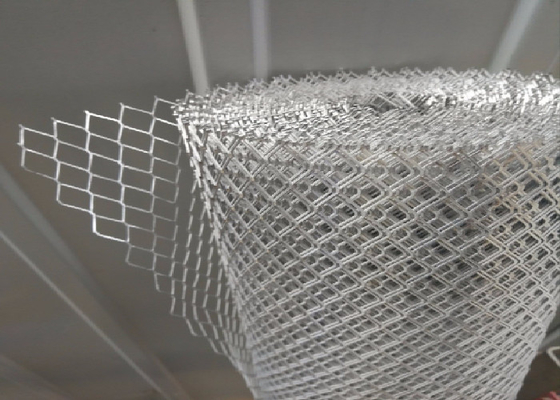

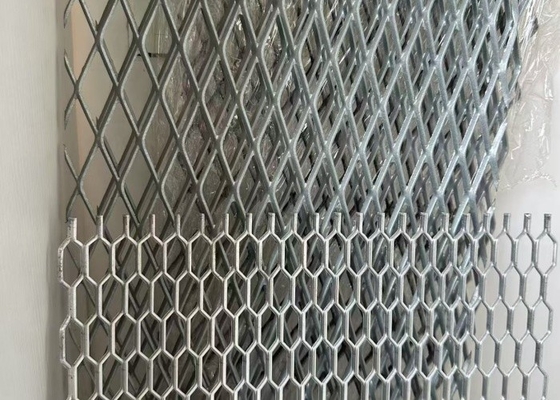

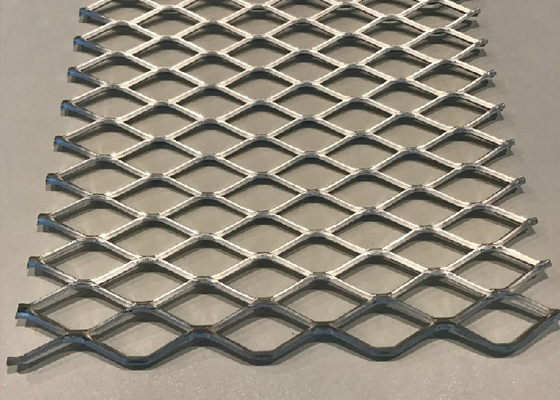

Expanded metal mesh is a durable material widely used in various applications including filter baskets, air filtration units, machine guards, animal cages, electrical equipment protection, safety doors & windows, room dividers, decorative ceilings, highway fences, and concrete reinforcement.
Available in stainless steel 304, galvanized steel, steel, aluminum and other materials. Hole sizes range from 0.5mm to 20mm, with custom sheet dimensions available upon request.
Standard sheet sizes include 1000×1000 mm, 1000×2000 mm, and 1220×2440 mm.
| Thickness (mm) | SWD (mm) | LWD (mm) | Wire stems width (mm) | Width & Length |
|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | Width: 0.5m-2.0m Length: 30m, 50m Other sizes available upon request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 |
1. Custom packaging available upon request
2. Standard packaging options:
